AMI 255

AMI Oleodinamica

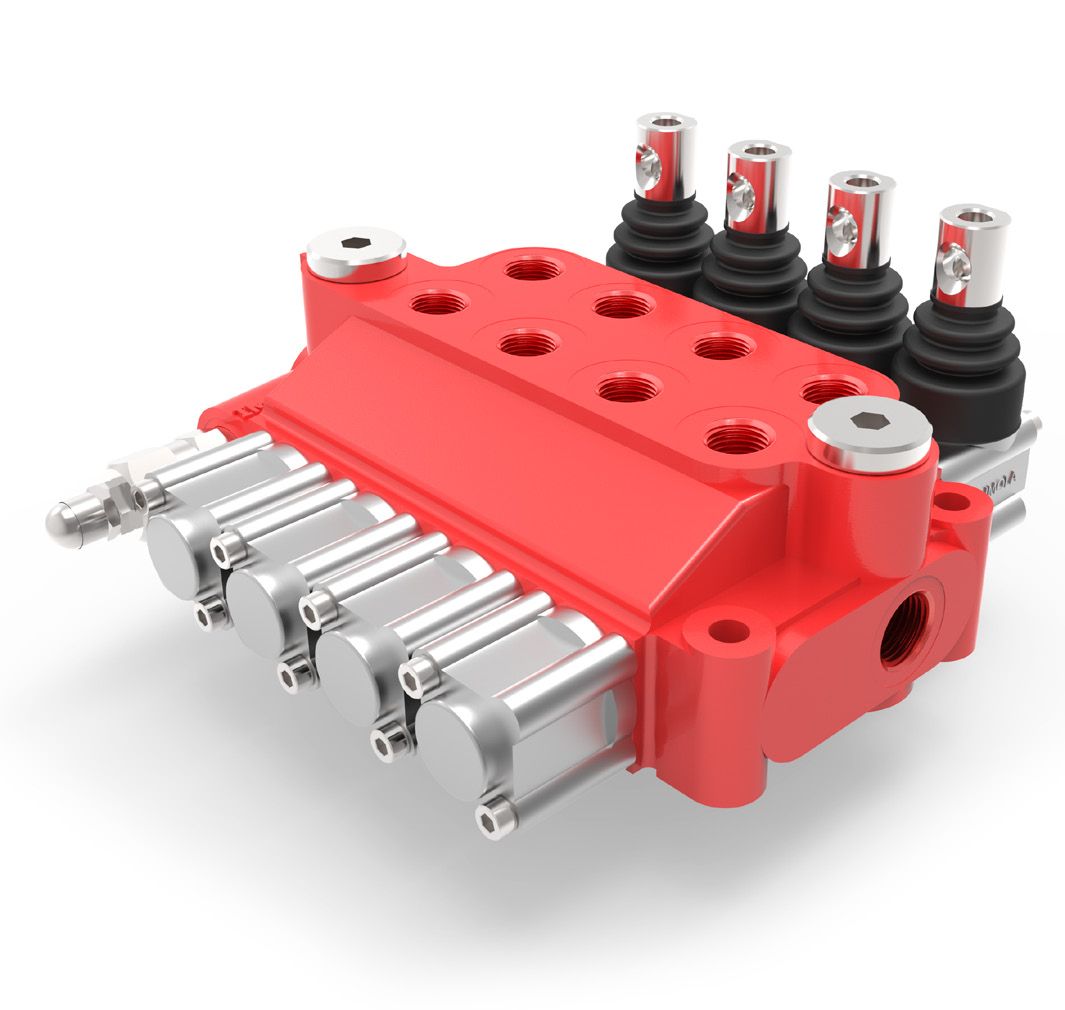

AMI 255 Monoblock Directional Control Valve

Manufactured in 5 sections

• Nominal flow rate : 45 l/min
• MAX working pressure : 350 bar
• MAX return back pressure : 80 bar
• Standard PRESSURE RELIEF valve, may be set : from 10 to 350 bar
• Single-acting check valve on inlet Negative spool overlapping
• Working temperature : min.-30°C ÷ max. 80°C
• MAX spool leakage at 100 bar (Temp. 50°C Visc. 27 CST) : 18 ml/min
