Name: SAUGFLEX
Brand: Vitillo
SKU: 2507
Availability: InStock
Rating: 4.4 (1 reviews)

SAUGFLEX SAE 100 R4 - SAE J517

Codice	D.N	Hose Size	Outside Diameter	Max Working Pressure	Prezzo Netto Per/Mt	Quantita
Codice THR412S	D.N 19	Hose Size 19.0 mm 3/4”	Outside Diameter 28.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR416S	D.N 25	Hose Size 25.4 mm 1”	Outside Diameter 34.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR418S	D.N 28	Hose Size 28.0 mm 1 3/32”	Outside Diameter 38.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR420S	D.N 31	Hose Size 32.8 mm 1 1/4”	Outside Diameter 42.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR424S	D.N 38	Hose Size 38.2 mm 1 1/2”	Outside Diameter 48.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR425S	D.N 40	Hose Size 40.0 mm 1 9/16”	Outside Diameter 50.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR432S	D.N 51	Hose Size 51.0 mm 2”	Outside Diameter 62.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR438S	D.N 60	Hose Size 60.0 mm 2 3/8”	Outside Diameter 70.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR440S	D.N 63	Hose Size 63.5 mm 2 1/2”	Outside Diameter 75.5 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR448S	D.N 76	Hose Size 76.0 mm 3”	Outside Diameter 90.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR456S	D.N 90	Hose Size 90.0 mm 3 1/2”	Outside Diameter 104.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR464S	D.N 102	Hose Size 102.0 mm 4”	Outside Diameter 116.0 mm	Max Working Pressure 10 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR480S	D.N 125	Hose Size 125.0 mm 5”	Outside Diameter 139.0 mm	Max Working Pressure 6 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR496S	D.N 152	Hose Size 152.0 mm 6”	Outside Diameter 169.0 mm	Max Working Pressure 5 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THR4128S	D.N 203	Hose Size 203.0 mm 8”	Outside Diameter 223.0 mm	Max Working Pressure 5 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request

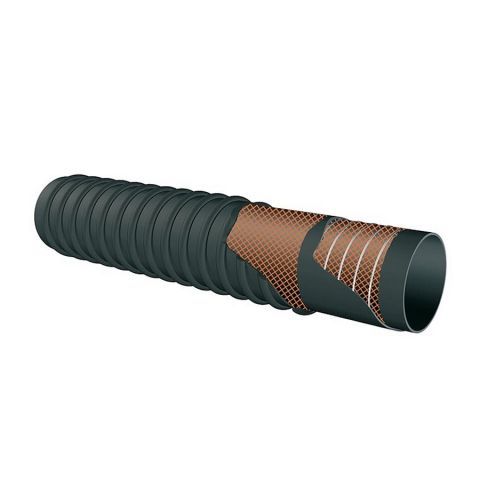

Tipo di tubi: Textile braided hose
Applicazione : Delivery of Oil in Hydraulic Systems - Suction Lines
Available Cover : Standard
Available Cover Color : Black
Operating Temperature Range: - 40°C/+100°C (-40°F to +212°F)
Tube : Oil resistant synthetic rubber
Rinforzo : 2 high tensile textile braids and 1 high tensile steel spiral
Cover : Square corrugated, weather and oil resistant special synthetic rubber

NOTA BENE: Il prezzo indicato è per metro di tubo flessibile, il massimo singola lunghezza della bobina è 100m per 1/4 ", 3/8", 1/2 "e 3/4", 50 metri per 1 ".
