Name: TEKNO FHM-DC
Brand: Vitillo
SKU: 2487
Availability: InStock
Rating: 4.4 (1 reviews)

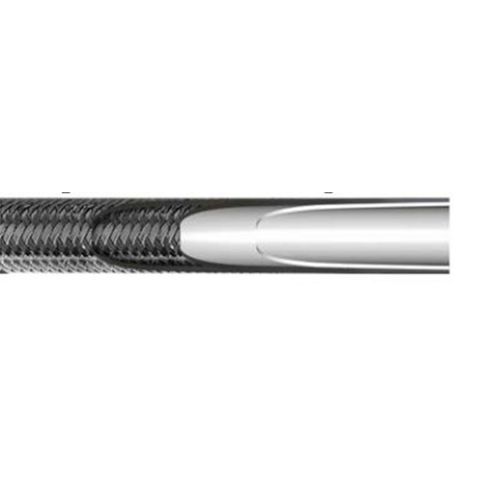

TEKNO FHM-DC SAE 100 R14

Codice	D.N	Hose Size	Outside Diameter	Max Working Pressure	Prezzo Netto Per/Mt	Quantita
Codice THFHMDC03	D.N 5	Hose Size 4.8 mm 3/16”	Outside Diameter 9.0 mm	Max Working Pressure 365 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THFHMDC04	D.N 6	Hose Size 6.4 mm 1/4”	Outside Diameter 10.5 mm	Max Working Pressure 365 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THFHMDC05	D.N 8	Hose Size 7.9 mm 5/16”	Outside Diameter 12.7 mm	Max Working Pressure 300 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THFHMDC06	D.N 10	Hose Size 9.5 mm 3/8”	Outside Diameter 14.3 mm	Max Working Pressure 285 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THFHMDC08	D.N 12	Hose Size 12.7 mm 1/2”	Outside Diameter 17.6 mm	Max Working Pressure 280 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THFHMDC10	D.N 16	Hose Size 15.9 mm 5/8”	Outside Diameter 21.0 mm	Max Working Pressure 235 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THFHMDC12	D.N 19	Hose Size 19.0 mm 3/4”	Outside Diameter 24.1 mm	Max Working Pressure 200 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request
Codice THFHMDC16	D.N 25	Hose Size 25.4 mm 1”	Outside Diameter 31.5 mm	Max Working Pressure 150 bar	Prezzo Netto	Quantita	Aggiungi al Carrello Available on Request

Hose features: High pressure High temperatures
